Home > Products > USB Products > USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.
                            USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.
                            • USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.
                            • USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.
                            • USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.
                            • USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.

                            USB C-Type Female Connector, 16pin, SMT, USB -If Vid No.: 5510, USB -If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.

                            USB2.0 Type C Female Connector, 16PIN SMD SHELL MATERIALS:STAINLESS STEELMIDDLE CONTACT MATERIALS:STAINLESS STEELHOUSING MATERIALS:THERMOPLASTIC. UL94-V0CONTACT MATERIALS:HIGH-CONDUCTIVITY COPPER ALLOYSLOW LEVEL CONTACT RESISTANCE:0.04 ohm max.INSULATION RESISTANCE:100M ohm min.DIELECTRIC WITHSTANDI......

                            Send Inquiry

                            Product Description

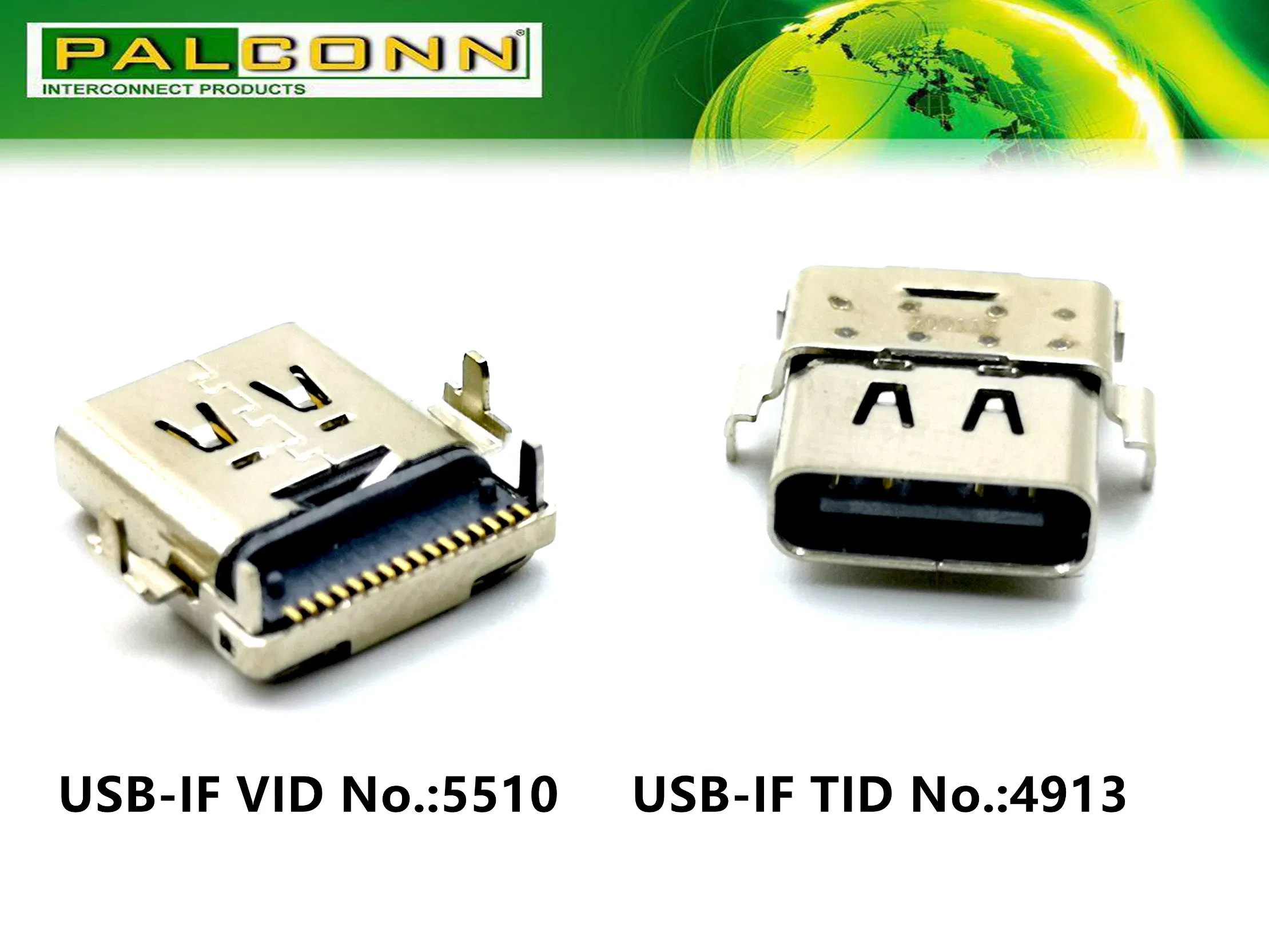

                            USB C-Type Female Connector, 16pin, SMT, USB-If Vid No.: 5510, USB-If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.

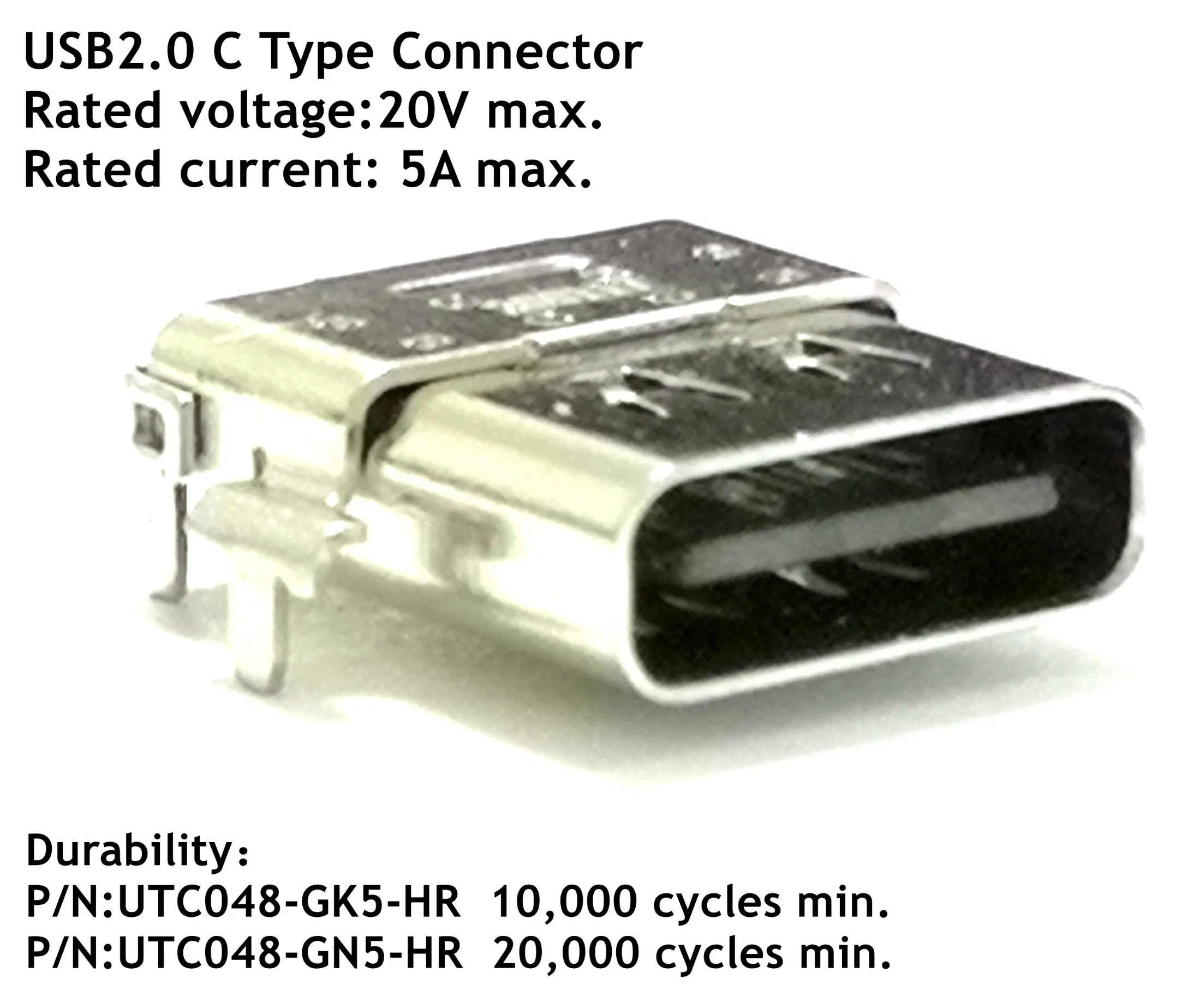

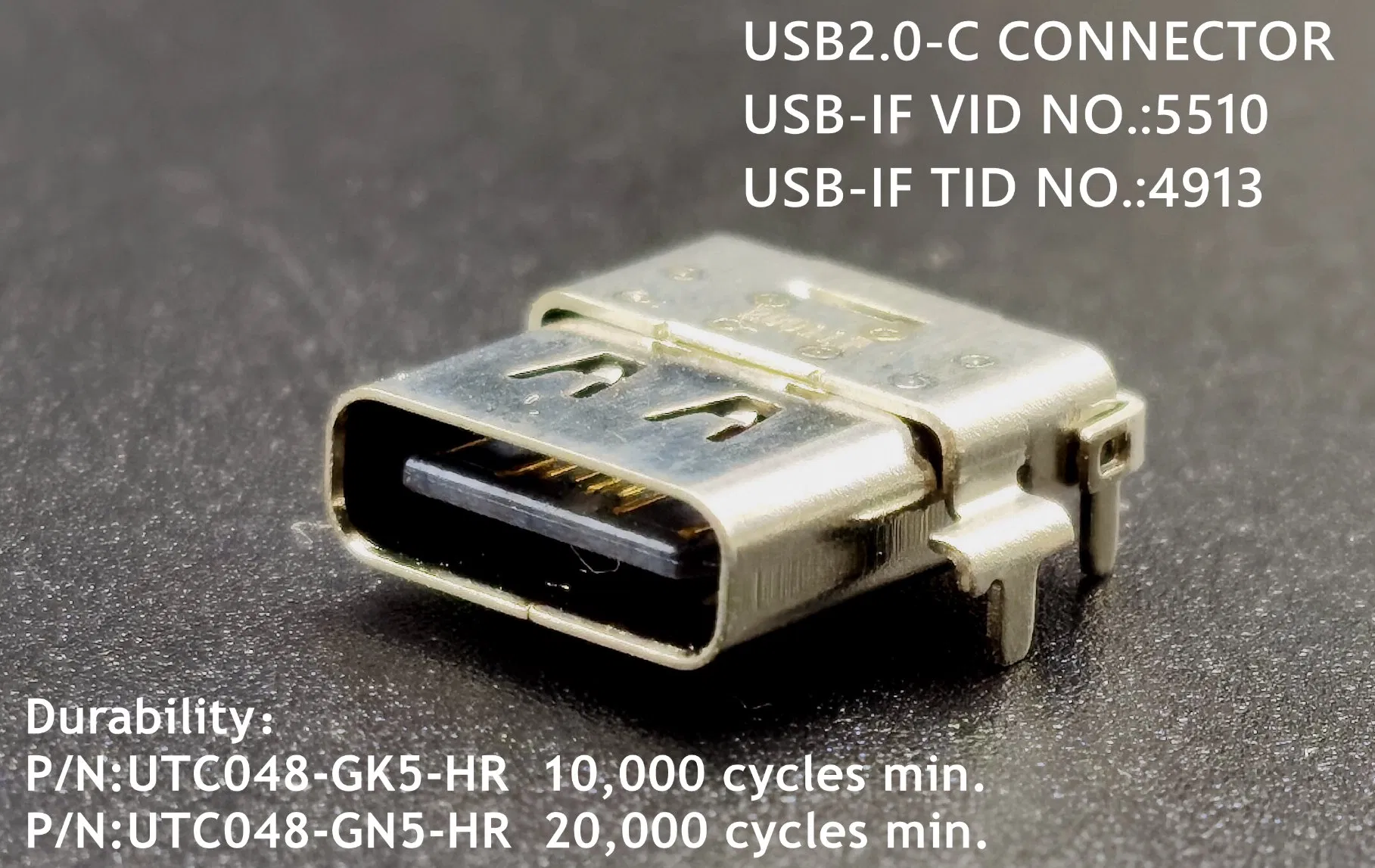

                            USB2.0 Type C Female Connector, 16PIN SMD


                            SHELL MATERIALS:STAINLESS STEEL
                            MIDDLE CONTACT MATERIALS:STAINLESS STEEL
                            HOUSING MATERIALS:THERMOPLASTIC. UL94-V0
                            CONTACT MATERIALS:HIGH-CONDUCTIVITY COPPER ALLOYS
                            LOW LEVEL CONTACT RESISTANCE:0.04 ohm max.
                            INSULATION RESISTANCE:100M ohm min.
                            DIELECTRIC WITHSTANDING VOLTAGE:100 VAC
                            CONTACT CURRENT RATING:5A max
                            INSERTION FORCE:5-20N
                            EXTRACTION FORCE:8-20N
                            DURABILITY:20,000 CYCLES
                            IR REFLOW CONDITION PEAK TEMPERATURE:260ºC-10s
                             USB C-Type Female Connector, 16pin, SMT, USB-If Vid No.: 5510, USB-If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.
                            ItemStandard
                            Rated voltage20V AC rms MAX
                            Rated current5.0 A MAX
                            Operating temperature-30ºC~+85ºC, 85% RH MAX
                            Storage temperature-40ºC~+85ºC, 85% RH MAX

                            USB C-Type Female Connector, 16pin, SMT, USB-If Vid No.: 5510, USB-If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.

                            Apply to Power adapter for Type C interface, Power Bank etc.

                            USB C-Type Female Connector, 16pin, SMT, USB-If Vid No.: 5510, USB-If Tid No.: 4913, Durability: 20, 000 Cycles Min. Contact Current Rating: 5A Max.
