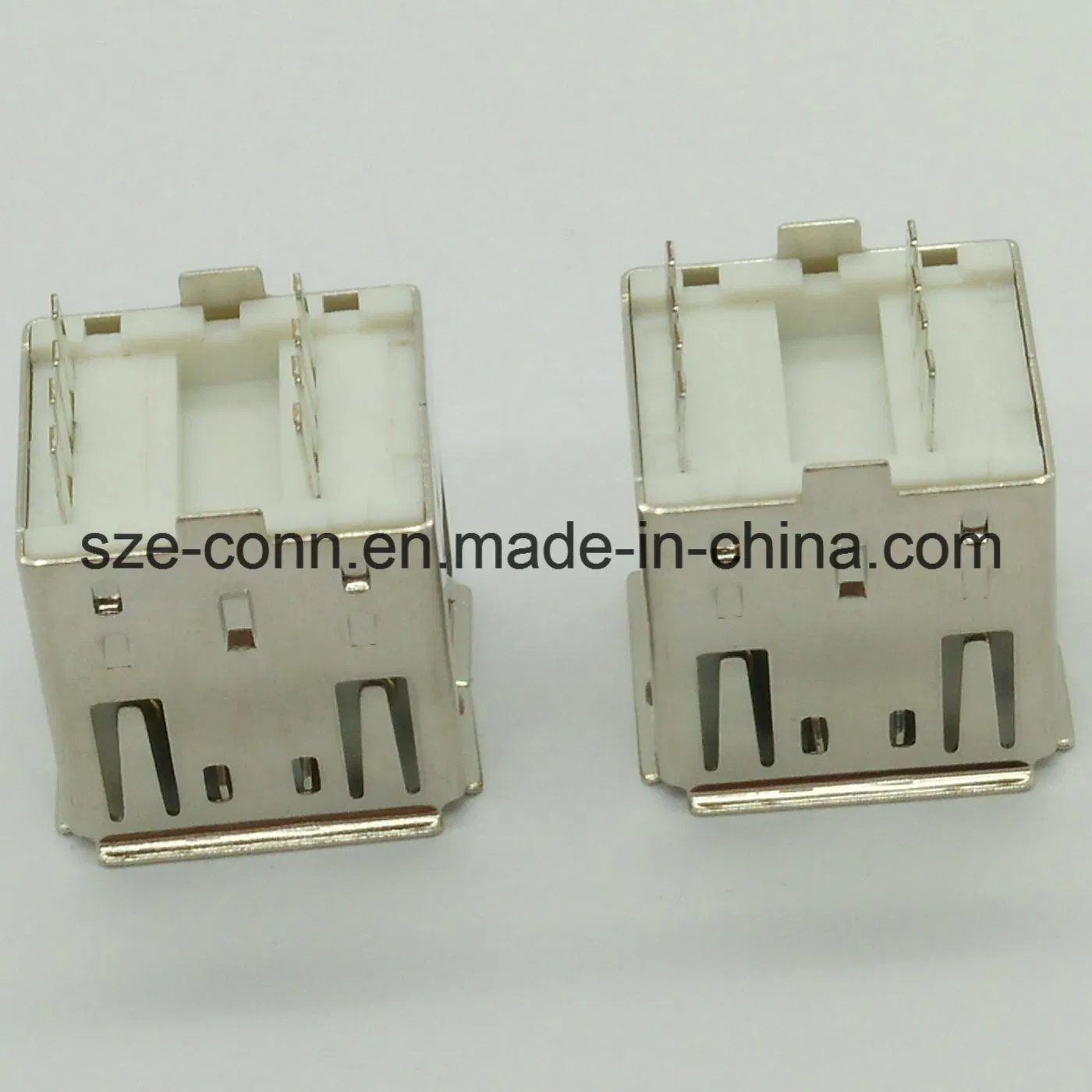

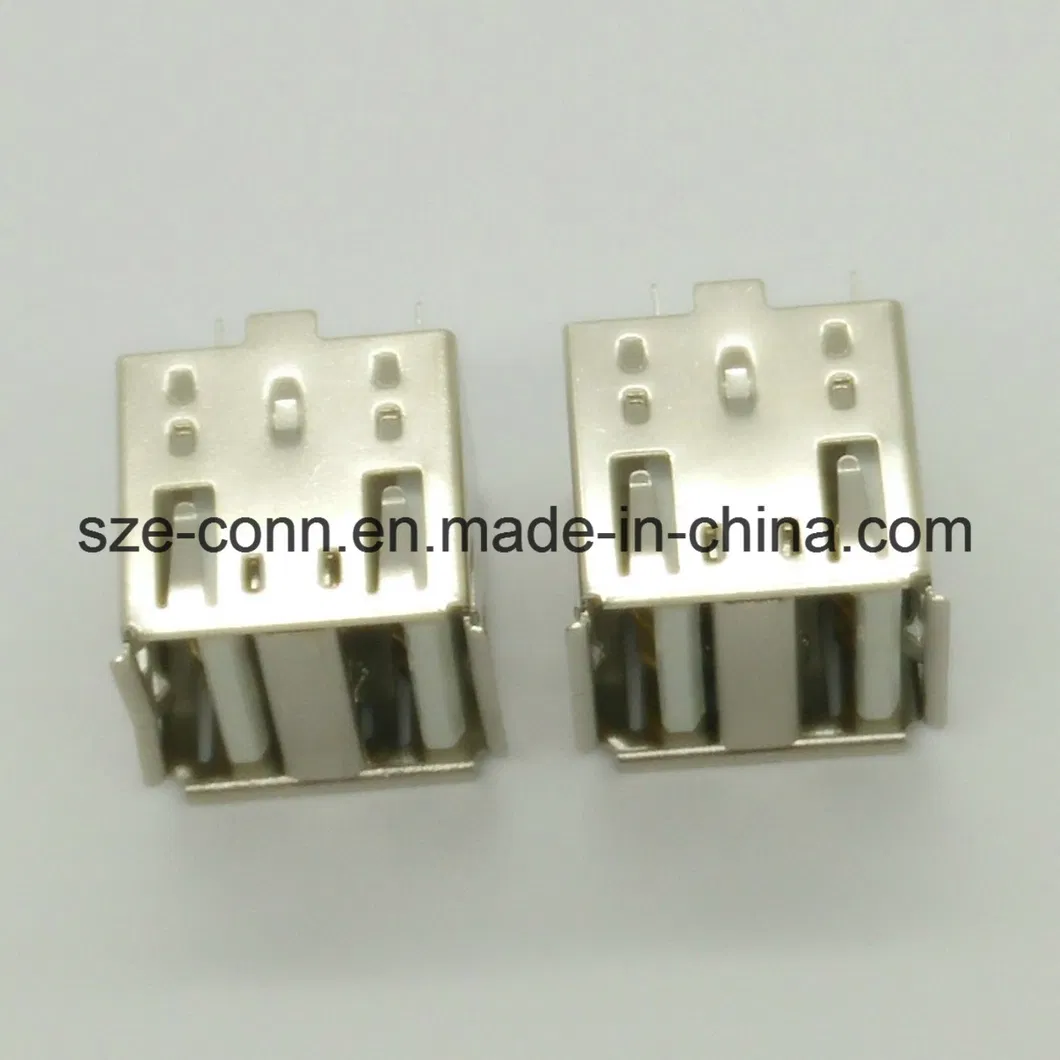

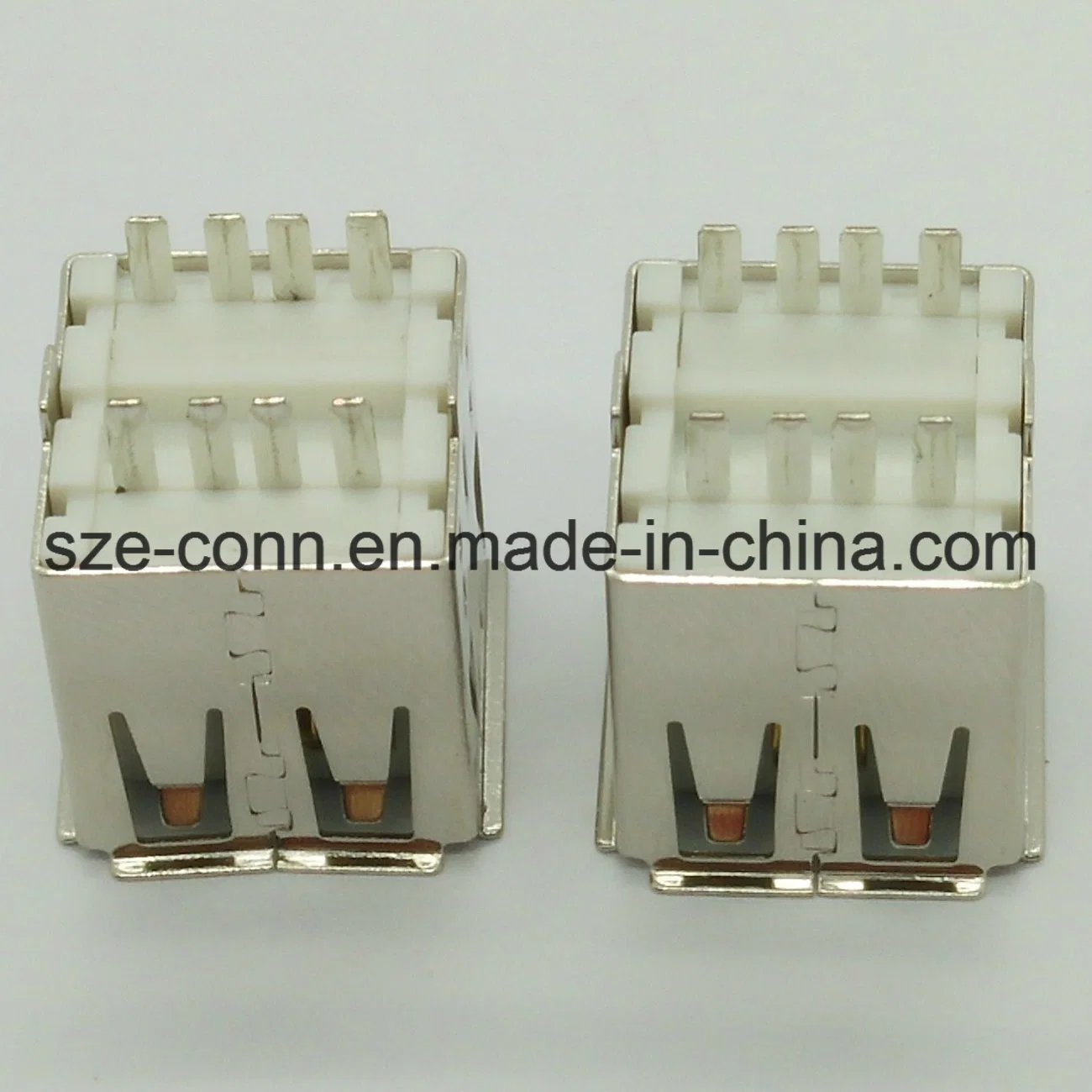

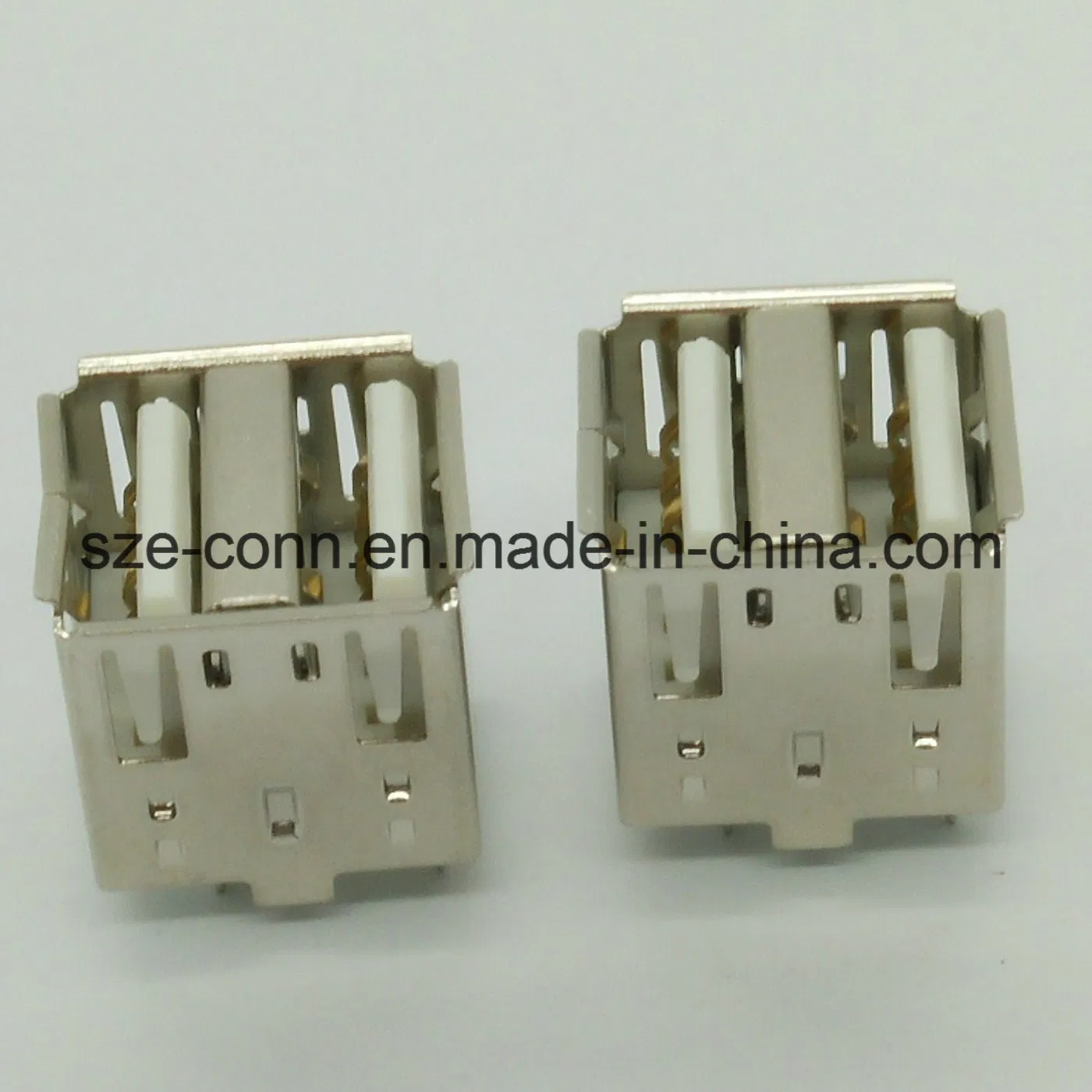

Stack &Double USB 2.0 a Type Female Solder Connector

Product Details
Basic Info.
Model NO.: USB5-D8F1-WNS0-02
Interface Type:USB
Connector:USB
Universal:Universal

Data Transmission Function:Data Transmission Function
Surface:Smooth
Charging Function:Charging Function
Customized:Tranditional ,can customized
USB:2.0

Additional Info.
Packing:Reel
Standard:RoHs
Origin:Kunshan, China
Production Capacity:100000000PCS/M
Product Description
Features:
1. With A Type/B Type and Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

.
