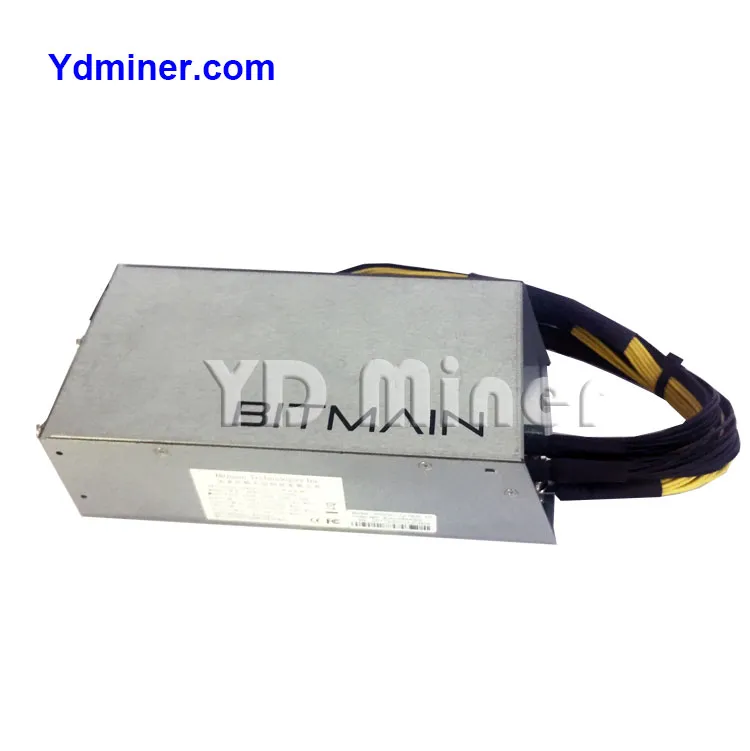

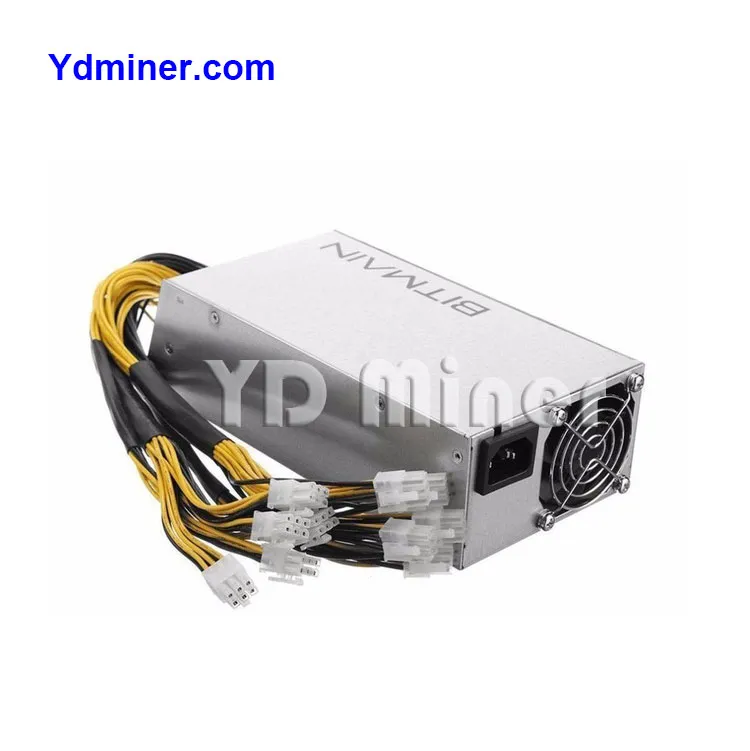

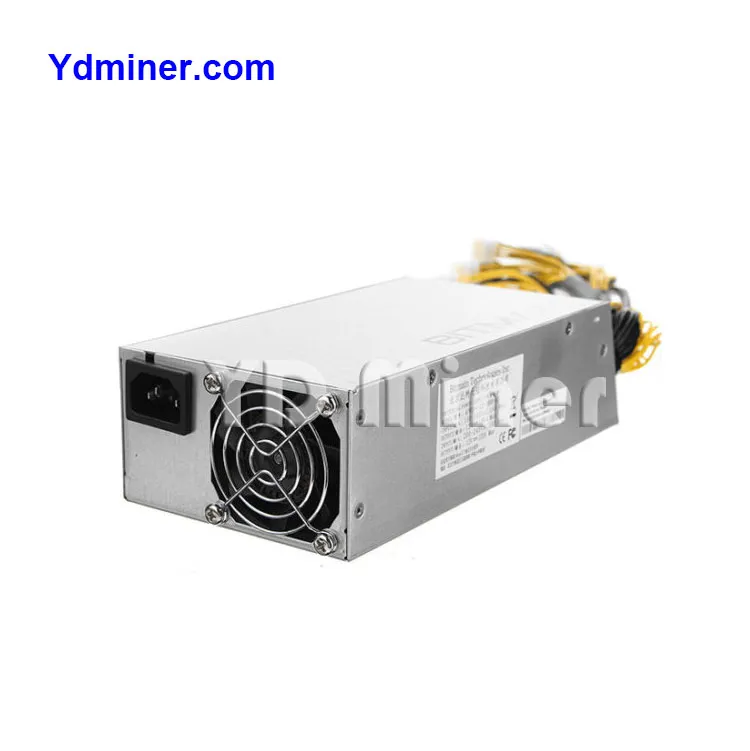

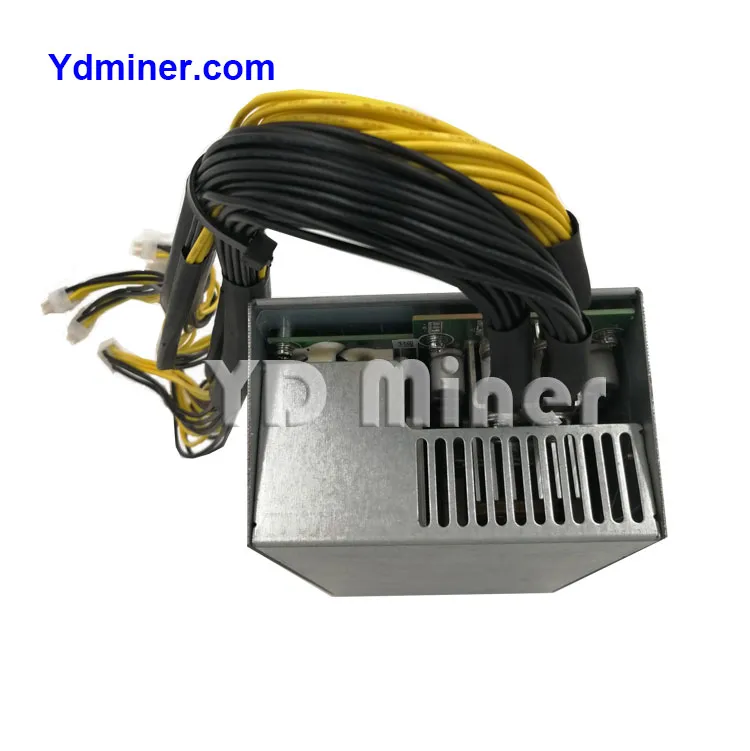

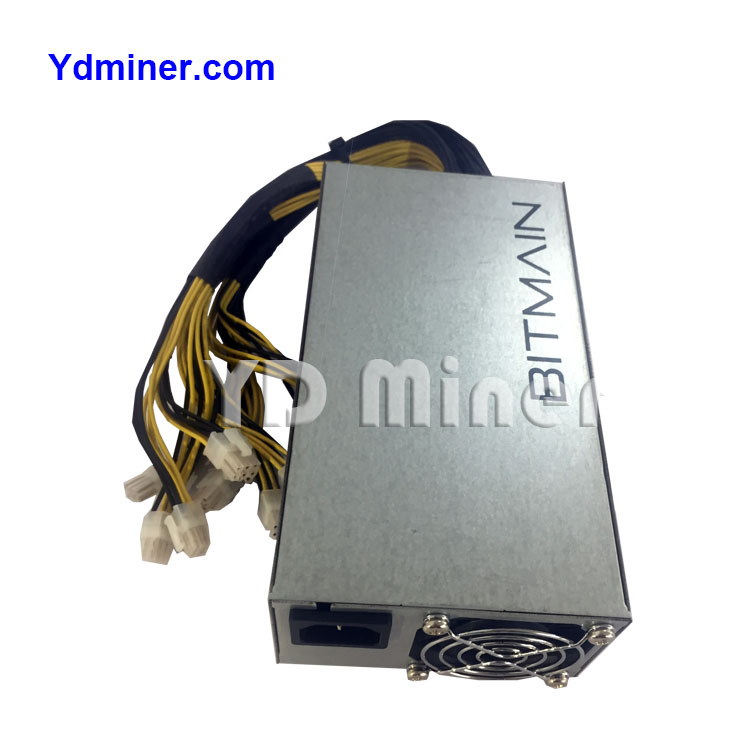

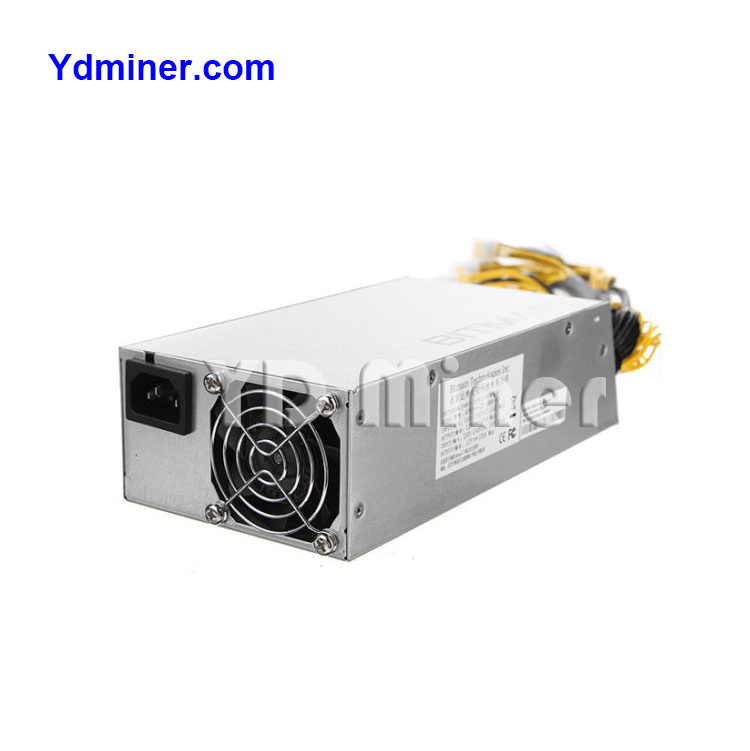

Fast Delivery Power Supply S9 Miner PSU Bitmain Apw3
fast delivery power supply s9 miner psu bitmain apw3Product Description 1. The APW3++ can deliver a maximum power of only 1200W if it is connected to a 110V mains power supply. To obtain the rated power of 1600W, the APW3++ must be connected to a 220-240V mains power supply. Please check the main......
Send Inquiry
Product Description
1. The APW3++ can deliver a maximum power of only 1200W if it is connected to a 110V mains power supply. To obtain the rated power of 1600W, the APW3++ must be connected to a 220-240V mains power supply. Please check the mains power supply that is the standard in your region before ordering.
2. The power cord is not included, please find one with at least 10A from your local market.
3. This batch of PSU comes with only 10 PCIe connectors
Specifications:
Output | DC Voltage | 12.15V |
Rated Current(220V input) | 133A | |
Rated Current(110V input) | 100A | |
Rated Power(220V input) | 1600W | |
Rated Power(110V input) | 1200W | |
Ripple & Noise | <1% | |
Voltage Regulation | <2% | |
Source Regulation | <1% | |
Load Regulation | <1% | |
Setup, Rise Time | <2S | |
Power off Protection Trip Time | >9mS | |
Interface Type | 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors) | |
Noise Level | <43DB | |
Input | Voltage Range | 100-240V AC |
Starting Voltage | 95-105V AC | |
Frequency Range | 47-63Hz | |
Power Factor | >0.95 (full load) | |
Leakage Current | <1.5mA (220V 50Hz) | |
Protection | Low-voltage Input | 80-89V AC |
Output Short Circuit | Yes | |
Output Overcurrent | 134-185A max. | |
Overheat Protection | Yes | |
Environment Conditions | Operating Temperature | -20°C - 50°C |
Operating Humidity | 20% - 90% relative humidity (non-condensing) | |
Structure | Dimensions | 220mm*108mm*62mm |
Cooling | Fan | Forced-air cooling |
1. Packaging Details: Carton Packing; One Machine Per Carton 2. Delivery Details: UPS, DHL, FedEx, EMS, TNT 3. Port: Shenzhen / Hong Kong 4. Lead Time: in 3 days after payment 5. If your shipment is not received within 30 days after payment, please contact us. We will track the shipment and get back to you as soon as possible. 6. The images shown above are not the actual item and are for your reference only. |
Miners are customized products according to customer's request. Price will be adjusted with the fluctuation of market. Please invest carefully and confirm with us before your payment. Once the purchase is completed, it means the recognition of the after-sale policies as below. 1. No refund and return after the payment. 2. A 45-day warranty for Baikal miners, 180-day warranty for other miners. 3. If it is out of warranty, we will provide paid maintenance service.
Warranty Invalid: 1. Customer removes/replaces any components by himself without receiving permission from Bitmain first 2. Damage caused by poor power supply, lightning or voltage surges 3. Burnt parts on hash boards or chips 4. Miner/boards/components damage due to water immersion or corrosion due to wet environment 5. Over Clock Please contact with us as soon as possible if you get the thing happened above. We will help you contact the service center to solve the problems as per your request. |
