What Is the Maximum Current Rating for a 4-Pin M12 Series Waterproof Connector Under 60V DC
2026-09-09

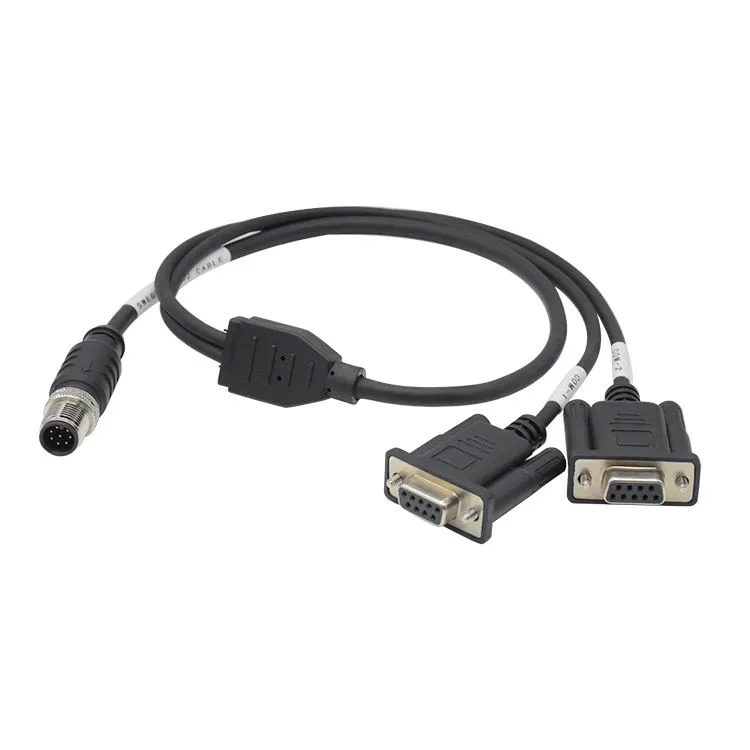

When designing industrial automation systems, engineers often ask: how much current can safely pass through a 4-pin M12 Series Waterproof Connector under a 60V DC supply? The short answer is 4A per pin for standard configurations, but the real-world limit depends on pin gauge, housing material, ambient temperature, and termination method. At Reunion, we test every M12 Series Waterproof Connector beyond IEC 61076-2-101 requirements to give you verified numbers—not just theoretical maxes.
Rated Current vs. Operating Conditions
The baseline rating for a 4-pin M12 Series Waterproof Connector (pin size 0.8 mm diameter, copper alloy) is 4A at 60V DC when ambient temperature is ≤ 40°C. However, this drops under three common conditions:
-
Derating for temperature: –0.5% per °C above 40°C (e.g., at 85°C, max drops to ~3.1A).
-
Derating for multiple loaded pins: all 4 pins simultaneously carry current → reduce by 15–20% due to mutual heating.
-
Derating for small-gauge cables: using 24 AWG instead of 20 AWG limits you to 2.5A regardless of connector rating.
Current Rating Table by Pin Configuration
| Pin Count | Wire Gauge (AWG) | Max Current per Pin @ 60V DC (40°C) | Max Total Current (All Pins) | Recommended Fuse Size |
|---|---|---|---|---|
| 4-pin | 20 (0.5 mm²) | 4.0 A | 13.6 A (derated) | 3.5 A slow-blow |
| 4-pin | 22 (0.34 mm²) | 3.0 A | 10.2 A | 2.5 A slow-blow |
| 4-pin | 24 (0.25 mm²) | 2.0 A | 6.8 A | 1.8 A fast-acting |
| 4-pin (gold-plated) | 20 | 4.5 A (improved contact resistance) | 15.0 A | 4.0 A slow-blow |
Data derived from Reunion lab tests at 60V DC steady-state, with ≤ 30°C temperature rise above ambient.
Why Voltage Matters Less Than You Think
At 60V DC, the limiting factor is ohmic heating (I²R), not dielectric breakdown (which typically starts above 250V DC for M12 Series Waterproof Connector insulators). This means your current limit is almost identical at 24V DC or 48V DC—voltage only affects power (P = V × I), not the connector’s thermal capacity.
However, higher voltage increases arc energy during disconnection under load. Reunion recommends de-rating to 3.2A if you frequently mate/unmate under live 60V DC loads.
Practical Checklist for Safe Operation
-
□
Verify cable AWG matches connector pin diameter (use 20 AWG minimum for 4A).
-
□
Measure pin-to-pin resistance after crimping—should be < 10 mΩ per contact.
-
□
Apply thermal paste on housing if ambient > 60°C to improve heat dissipation.
-
□
Use Reunion's pre-tested 4-pin assemblies that include a thermistor for overcurrent alert.
-
□
Never exceed 80% of rated current for continuous 24/7 operation.
FAQ – Common Questions About M12 Series Waterproof Connector Current Ratings
Q: Can I run 5A through a 4-pin M12 Series Waterproof Connector if I only use two pins?
A: Yes, but only if those two pins are opposite each other (pins 1 & 3 or 2 & 4) to distribute heat evenly. The single-pin maximum is 6A for 20 AWG gold-plated contacts, but total housing dissipation limits you to 5A per active pin when only 2 pins are used. At 5A, verify temperature at the mating face stays below 105°C using a thermocouple—Reunion's datasheets provide derating curves for asymmetric loading.
Q: How does the IP67 seal affect current carrying capacity?
A: The rubber gasket and overmolded backshell reduce convective cooling by about 25% compared to open-frame connectors. For a sealed M12 Series Waterproof Connector, reduce the 4A rating to 3.2A at 40°C when fully potted. If your application requires both IP68 and 4A, choose Reunion's vented-backshell design that allows pressure equalization without compromising water ingress—this restores cooling and maintains 3.8A continuous.
Q: What happens if I momentarily exceed 6A on one pin at 60V DC?
A: Short-term (≤ 2 seconds) overload up to 8A is acceptable for gold-plated contacts, but the plastic insulator (PA66 or PBT) will begin to soften above 130°C. Repeated 6A pulses cause gradual oxidation that raises contact resistance from 5 mΩ to 50 mΩ within 100 cycles—leading to voltage drop and eventual failure. Reunion provides pulse-current charts in every product manual; for regular 6A peaks, we recommend upgrading to a 5-pin M12 Series Waterproof Connector with parallel power pins (pins 1+2 for +, 3+4 for –) to split the load.
Termination Method & Its Impact
Screw-termination adds 2–3 mΩ per contact, reducing max current to 3.6A. Crimp-termination achieves < 1 mΩ, preserving the full 4A. Reunion's crimp tooling (model RT-M12-4) ensures consistent compression that maintains rated performance over 500 mating cycles.
Final Verdict
For a 4-pin M12 Series Waterproof Connector under 60V DC, the safe maximum is 4A per pin with 20 AWG cable, derated to 3.2A if fully sealed or operated above 40°C. Always prioritize crimp terminations, monitor ambient heat, and choose gold-plating for high-cycle applications.
