What Are the Key Safety Standards for Electrical Muscle Stimulation Equipment PCB Manufacturing
2026-10-26

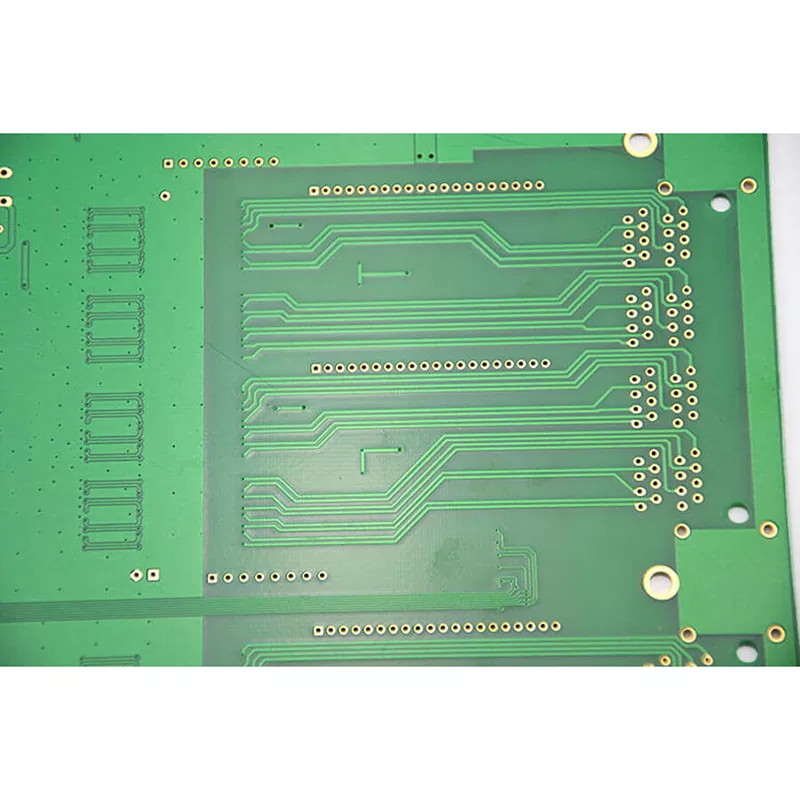

Ensuring patient safety begins at the bare board level. Electrical Muscle Stimulation Equipment PCB manufacturing demands strict adherence to international safety standards, and Aisen builds every layer of its process around these requirements. From creepage distance calculations to biocompatibility testing, the standards below define what separates a compliant board from a risky one.
Core Safety Standards at a Glance
| Standard | Scope | Key Requirement for Electrical Muscle Stimulation Equipment PCB |
|---|---|---|
| IEC 60601-1 | General medical electrical equipment | Reinforced insulation, creepage ≥ 8 mm at 250 V working voltage |
| IEC 60601-1-2 | EMC | Radiated and conducted emissions limits; immunity to 10 V/m fields |
| IEC 62368-1 | Audio/video and IT equipment (fallback) | Minimum clearance tables for patient-connected circuits |
| ISO 10993-1 | Biocompatibility | Cytotoxicity and sensitization testing for patient-contact materials |
| UL 94 V-0 | Flammability | Board substrate must self-extinguish within 10 seconds |
| IPC-A-610 Class 3 | Acceptability of electronic assemblies | Highest inspection criteria for life-support-adjacent hardware |
Design-Level Safety Controls
Compliance starts before fabrication. Aisen engineers apply the following controls during Electrical Muscle Stimulation Equipment PCB layout:
-
Isolation barriers: Patient-connected circuits are separated from mains-referenced sections by reinforced insulation, with slot milling used where spacing alone is insufficient.
-
Creepage and clearance: Working voltage, pollution degree, and material group are documented per IEC 60601-1 Table 12, and spacing is verified in CAM before release.
-
Leakage current paths: Y-capacitor placement and return-path geometry are modeled to keep patient leakage current below 100 µA under single-fault conditions.
-
Thermal derating: Power traces and electrode drive stages are derated to 80% of rated current at 40 °C ambient to prevent delamination.
Manufacturing and Verification Checklist
| Stage | Control | Acceptance Criterion |
|---|---|---|
| Incoming material | Laminate and prepreg CoC review | Tg ≥ 150 °C, UL file number verified |
| Etching and plating | Copper thickness measurement | ±10% of specified value |
| Solder mask | Dielectric withstand test | 500 VDC, no breakdown |
| Final inspection | IPC-A-610 Class 3 visual | Zero critical defects |
| Batch traceability | Serialization and retention | 10-year record retention |
FAQ
Q: Which standard governs insulation coordination for Electrical Muscle Stimulation Equipment PCB?
A: IEC 60601-1 governs insulation coordination. It requires the manufacturer to determine working voltage, pollution degree, and material group, then apply the creepage and clearance tables to every patient-connected net. Reinforced insulation is mandatory between mains and patient circuits, and compliance must be demonstrated through type testing plus routine production dielectric tests.
Q: Does an Electrical Muscle Stimulation Equipment PCB need biocompatibility testing?
A: Yes, when any board surface or coating contacts intact skin. ISO 10993-1 requires cytotoxicity, irritation, and sensitization evaluation for patient-contact materials, including solder mask and conformal coating. Test reports should be retained and referenced in the technical file submitted for regulatory clearance.
Q: How is EMC compliance verified for Electrical Muscle Stimulation Equipment PCB?
A: IEC 60601-1-2 defines the test regime. The assembled board undergoes radiated and conducted emission testing plus immunity testing against electrostatic discharge, radiated fields, and burst transients. Pre-compliance scanning during Aisen prototyping catches layout-level issues before formal laboratory testing, reducing certification cycles.
Meeting these standards is not a paperwork exercise—it is a manufacturing discipline. Aisen integrates standard-driven design reviews, traceable material control, and Class 3 inspection into every Electrical Muscle Stimulation Equipment PCB project. Contact us today to discuss your compliance requirements and request a manufacturing feasibility review.
