Segotep Ray Plus Black Red ATX Big Motherboard/ Big Power Supply Covering Computer Case
Case parameter:NameRAY PLUS (business edition) PictureFOB(complete container)US$13LCL (Lower quantity )US$12.00Support motherboardATX/M-ATX / ITXSide panel Metal I/O FeaturesUSB3.0*1+USB 2.0*2,HD AUDIO Fans & Radiator SupportTop: 12cm*3 Rear:12cm*1 PSU cover:12cm*2 ......
Send Inquiry
Product Description

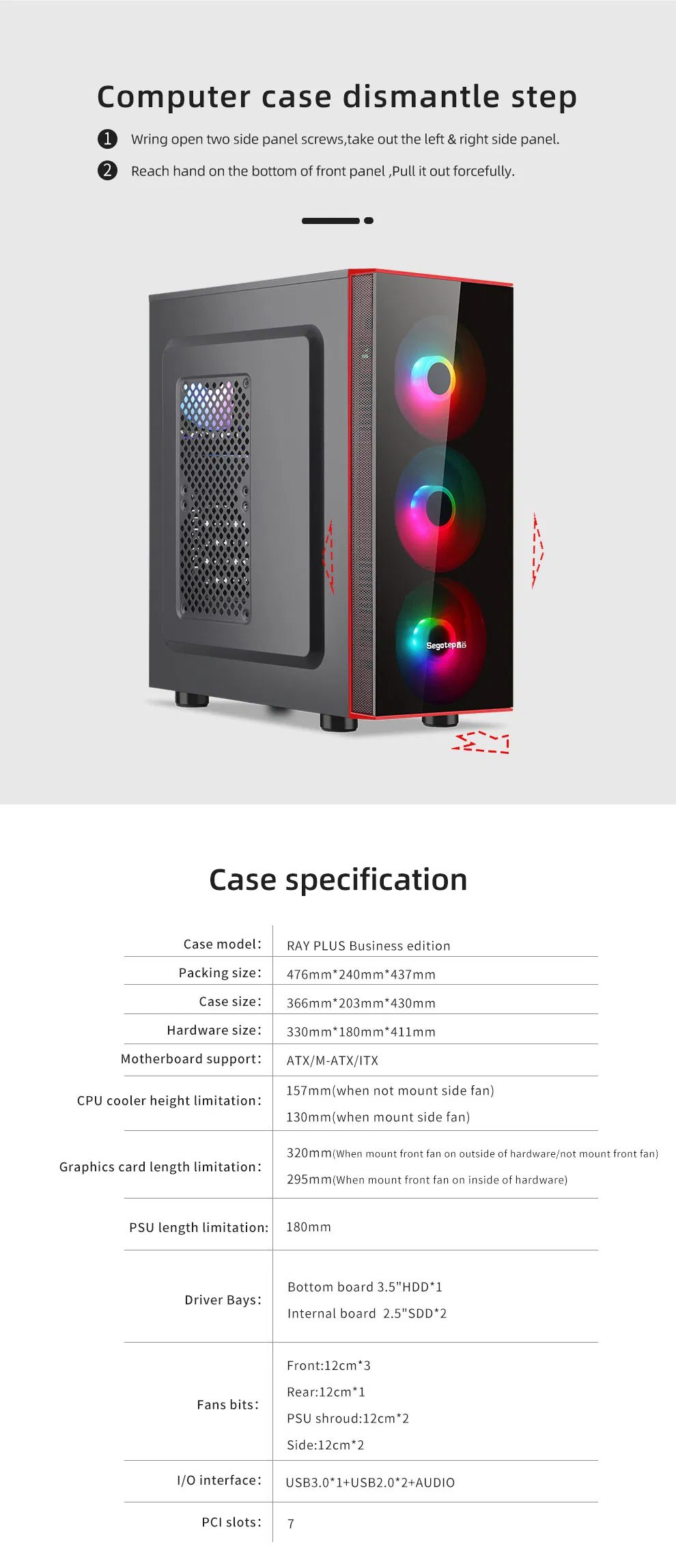

Case parameter:
| Name | RAY PLUS (business edition) | Picture | |
FOB(complete container) | US$13 |  | |
| LCL (Lower quantity ) | US$12.00 | ||
| Support motherboard | ATX/M-ATX / ITX | ||
| Side panel | Metal | ||
| I/O Features | USB3.0*1+USB 2.0*2,HD AUDIO | ||
| Fans & Radiator Support | Top: | 12cm*3 | |
| Rear: | 12cm*1 | ||
| PSU cover: | 12cm*2 | ||
| Side: | 12cm*2 | ||
| Dimensions (mm) | Packing | 490*280*495mm | |
| Case | 440*235*435mm | ||
| Structure | 440*180*435mm | ||
| Driver Bays Support | Bottom board | 3.5"HDD*1 | |
| Internal board | 2.5"SDD*2 | ||
| Support | CPU cooler height limitation | 157mm(when not mount side fan) | |
| 130mm(when mount side fan) | |||
| Graphics card length limitation | 320mm(When mount front fan on outside of hardware/not mount front fan) | ||
| 295mm((When mount front fan on inside of hardware) | |||
| PSU length limitation | 180mm(Vertical mount 3.5''HDD) | ||
| 130mm(Horizontal mount 3.5''HDD) | |||
| Packing Carton Material | K=K | ||
| Power Supply Support | ATX | ||
| PCI slots | 7 | ||
| Qty/40'HQ | |||

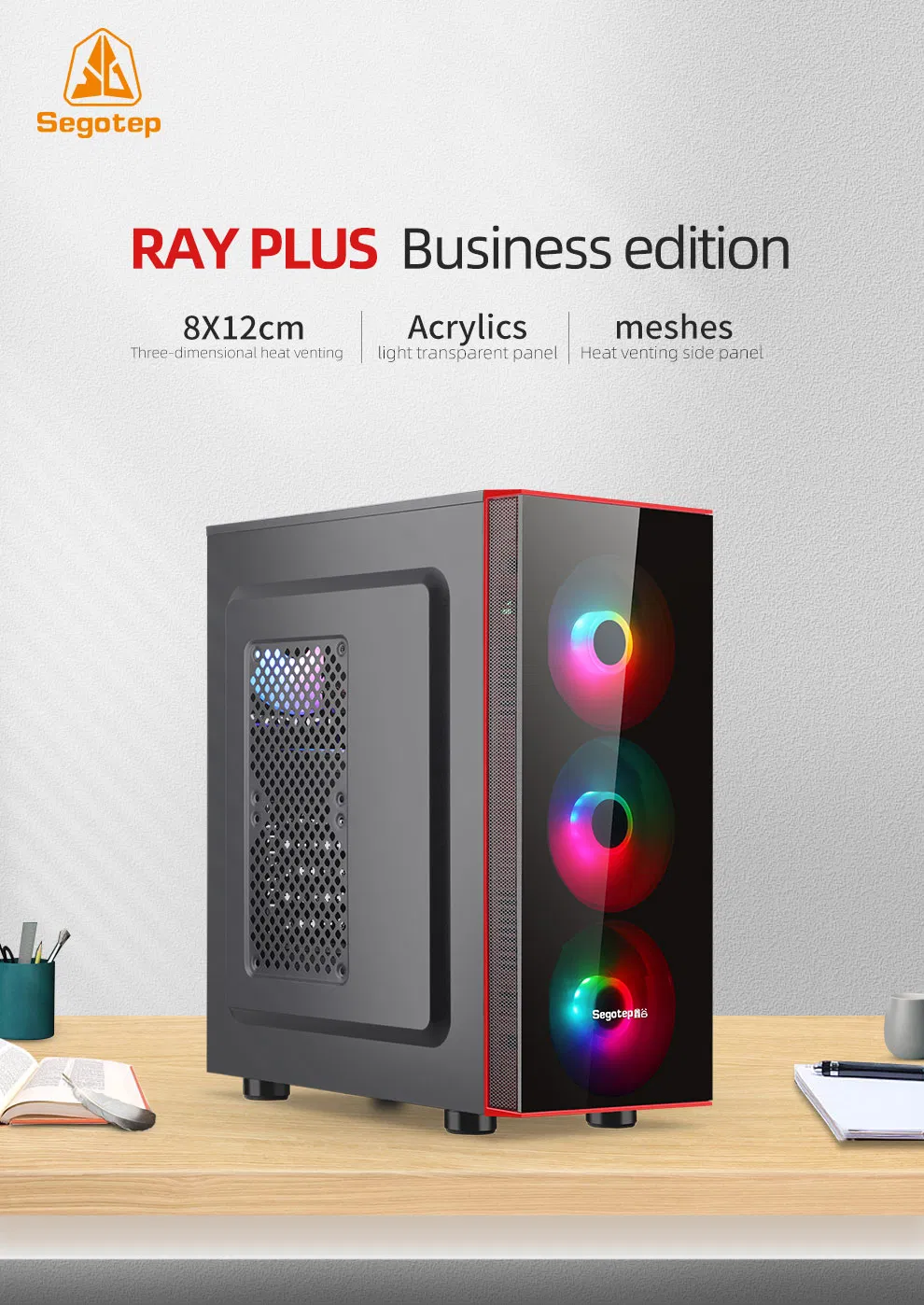

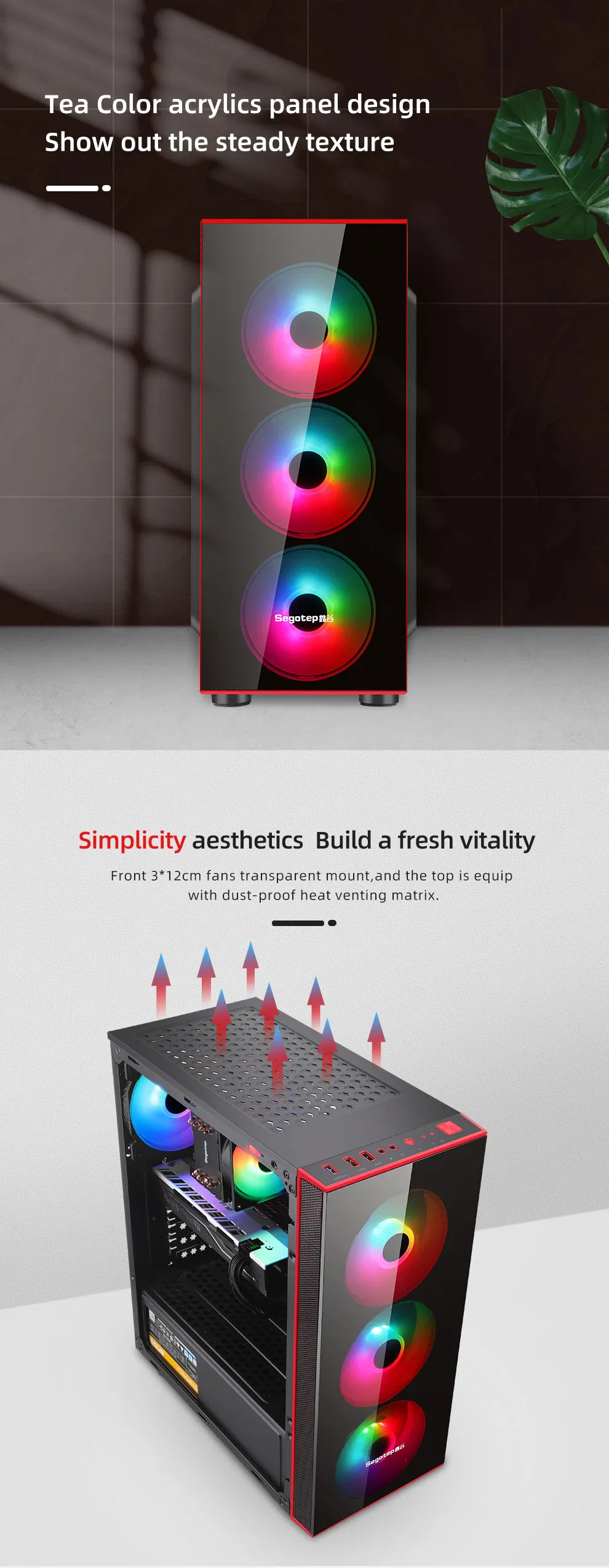

1.Tea Color acrylics panel design
Show out the steady texture

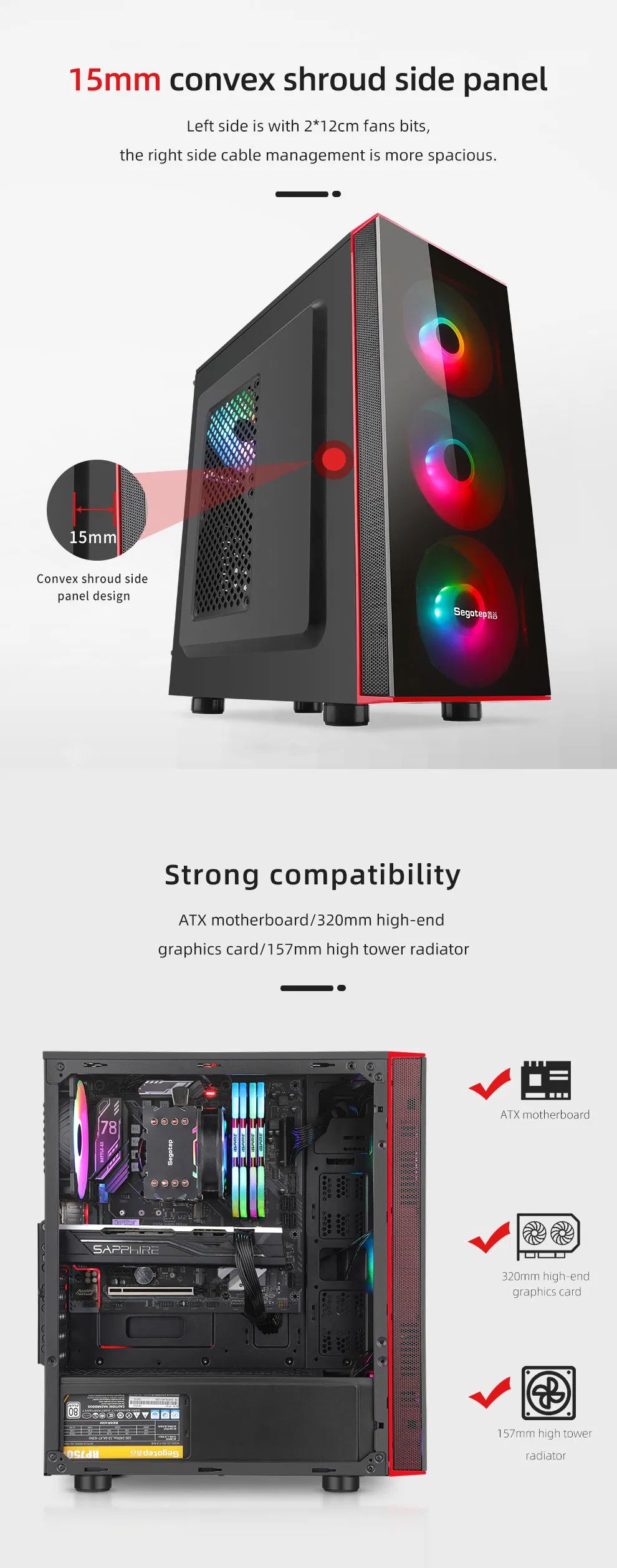

2.15mm convex shroud side panel
Left side is with 2*12cm fans bits,the right side cable management is more spacious.

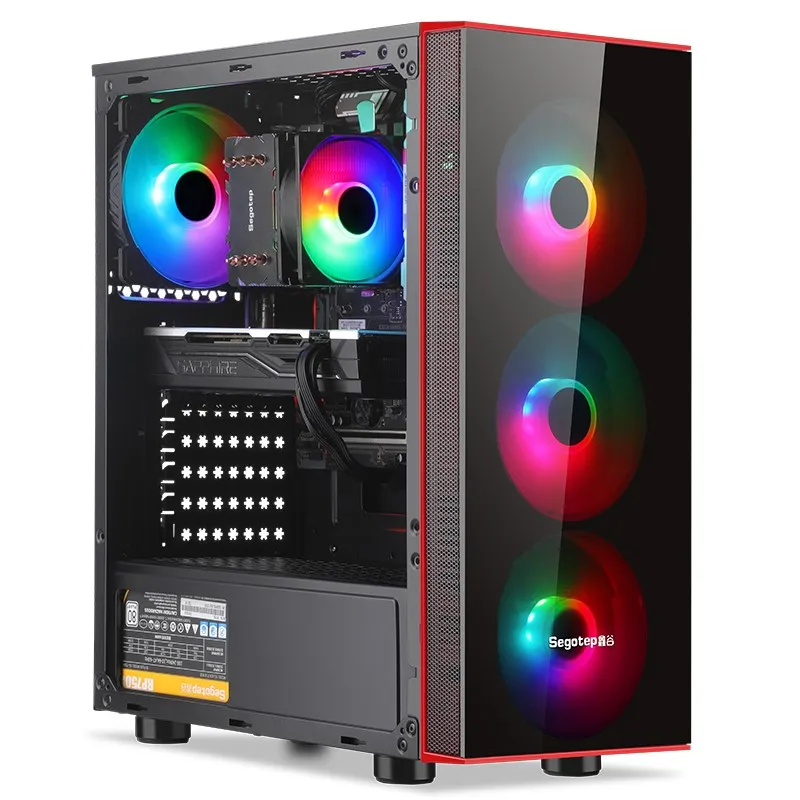

3.Strong compatibility
ATX motherboard/320mm high-end graphics card/157mm high tower radiator

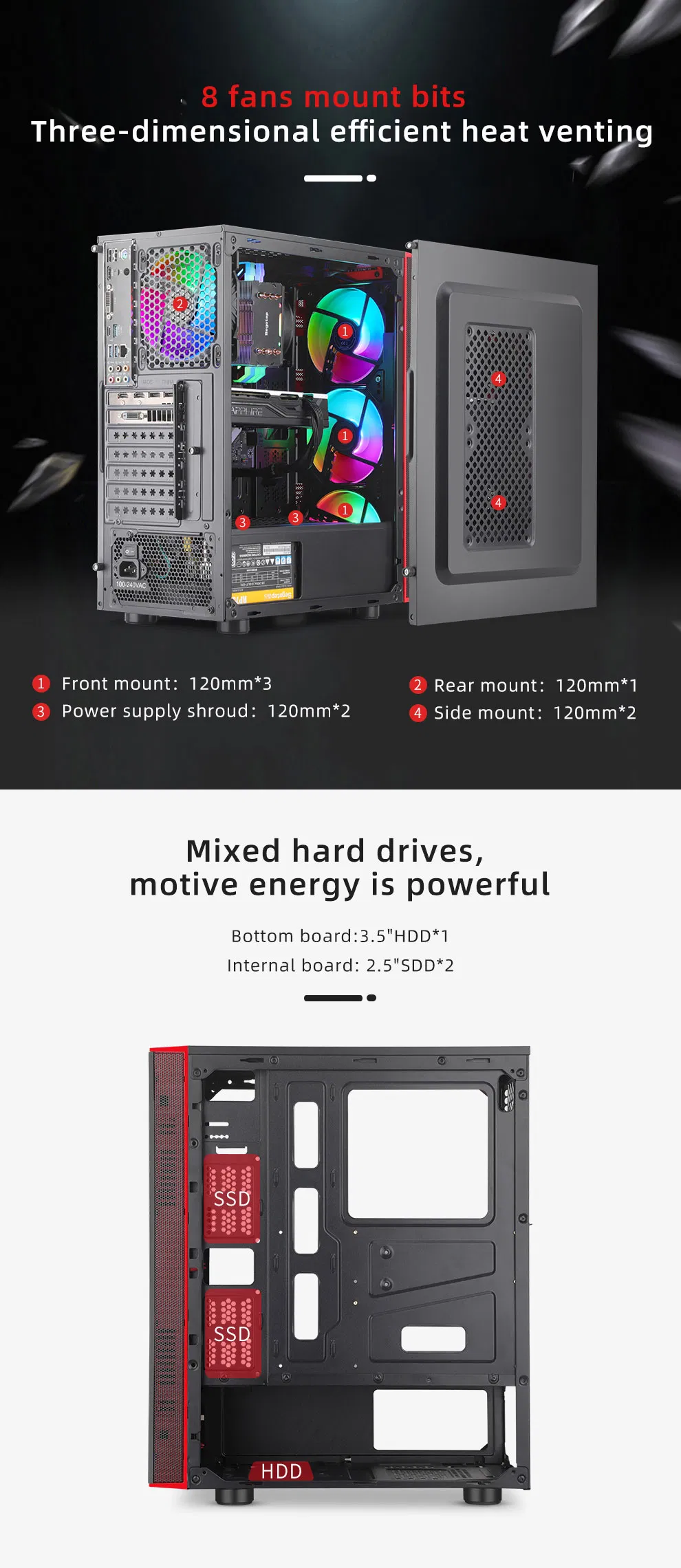

4,8 fans mount bits Three-dimensional efficient heat venting

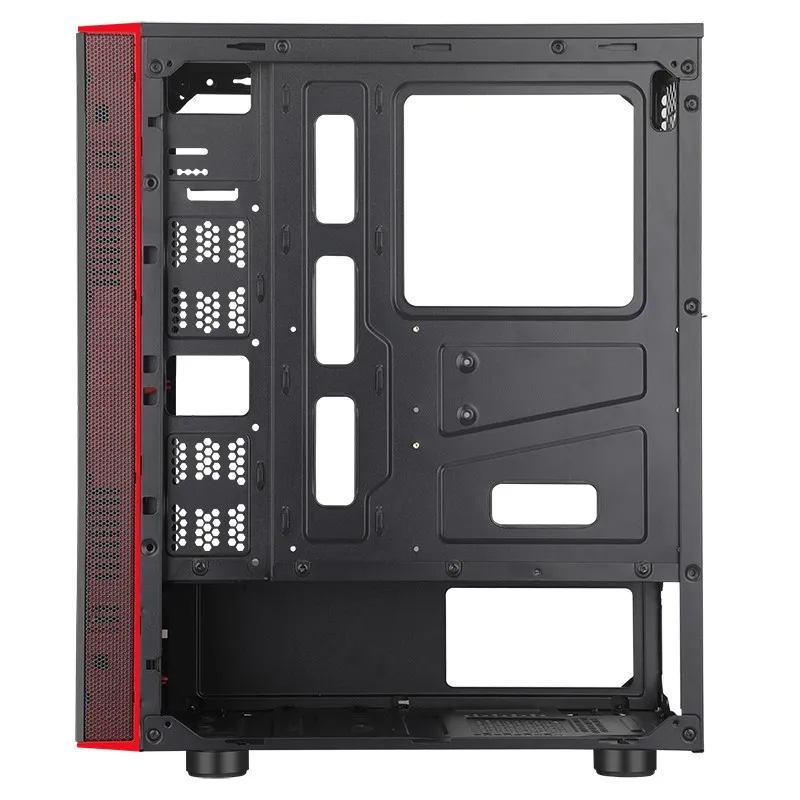

5,Mixed hard drives, motive energy is powerful
Bottom board:3.5"HDD*1
Internal board: 2.5"SDD*2
Please let me know does you still looking for an honorable factory in china guangdong ?
For segotep , Hope we could provide more exactly action and perfectly solution and satisifed service for you one day , even that day will be longer and longer,it doesn't matter ."We don't have American-style equipment, but when you need us one day, we must be the Man-bridge over "The Sacrifice"" (one hot military movie).
sale is help customer earn the money ,not to earn the money from customer .The sales who can grow together with customers ,which is the one who can have more long-term cooperation with customers.
For segotep , Hope we could provide more exactly action and perfectly solution and satisifed service for you one day , even that day will be longer and longer,it doesn't matter ."We don't have American-style equipment, but when you need us one day, we must be the Man-bridge over "The Sacrifice"" (one hot military movie).
You will experience
quality and professional product in compititive price ,
quality and professional product in compititive price ,
You will work with a factory who have best reputation in DIY computer component industries .
You will work with a factory who who have customer all over the world about 500 clients .Who can offer 20,0000 per/ month prodution capacity .
We are looking forward to work with you one day .
